1 Go on Mobile
2
3 GopherCon 2015
4
5 Hana Kim
6 Google
7
8
9 * Video
10
11 A video of this talk was recorded at GopherCon in Denver.
12
13 .link https://www.youtube.com/watch?v=sQ6-HyPxHKg Watch the talk on YouTube
14
15
16 * Caution
17
18 .image gophercon-go-on-mobile/caution.png 300 _
19
20 The Go Mobile project is experimental. Use this at your own risk.
21
22 While we are working hard to improve it, neither Google nor the Go
23 team can provide end-user support.
24
25 * Background
26
27 Mobile support was frequently requested
28
29 Some users built their own Go binaries for Android with cgo + external linking through NDK tool chains
30
31 Some Android Apps used Go even before Go 1.4
32
33 - Camlistore android app (out-of-process model)
34 - Goandroid+Mandala (in-process model)
35 - ...
36
37 * golang.org/x/mobile
38
39 Goal: Bring Go to Mobile Platforms
40
41 Why?
42
43 - Use Go to program a complete system (server/client)
44 - Write a single cross-platform Go library
45 - Bring a simple language and development tooling to mobile
46
47 * Two ways of using Go
48
49 Native Apps
50
51 - Write the whole app in Go
52 - Use Go packages for graphics, event handling, audio, etc.
53
54 SDK Apps
55
56 - Write Android UI in Java, iOS UI in Objective-C/Swift
57 - Write common functionality in Go as a library
58
59 * Native Apps
60
61 * Challenge #1: Cross-platform APIs
62
63 Work for Android, iOS, and Desktop environments
64
65 Provide a rich set of APIs
66
67 Follow idiomatic Go style
68
69 * Demo: Hello, Gopher!
70
71 .image gophercon-go-on-mobile/gophercloud.png 400 _
72
73 This program uses the packages from golang.org/x/mobile repo
74 There is no Java or Objective-C or C in my code
75
76 * What's available?
77
78 golang.org/x/mobile/...
79
80 - [[https://pkg.go.dev/golang.org/x/mobile/app][app: App control]]
81 - [[https://pkg.go.dev/golang.org/x/mobile/asset][asset: Asset management]]
82 - [[https://pkg.go.dev/golang.org/x/mobile/gl][gl: OpenGL ES 2]]
83 - [[https://pkg.go.dev/golang.org/x/mobile/event][event: Events]]
84 - [[https://pkg.go.dev/golang.org/x/mobile/geom][geom: Screen geometry]]
85
86 golang.org/x/mobile/exp/...
87
88 - [[https://pkg.go.dev/golang.org/x/mobile/exp/audio][audio: Audio]]
89 - [[https://pkg.go.dev/golang.org/x/mobile/exp/font][font: System font]]
90 - [[https://pkg.go.dev/golang.org/x/mobile/exp/sprite][sprite: 2-D rendering]]
91 - [[https://pkg.go.dev/golang.org/x/mobile/exp/sensor][sensor: Sensors]]
92
93 * Challenge #2: Build systems
94
95 Dealing with
96
97 - Toolchain installation
98
99 - Cross compilation for `GOOS/GOARCH` combos
100
101 - Android/iOS-specific build details
102
103 That is not fun!
104
105 * The gomobile tool
106
107 $ go get golang.org/x/mobile/cmd/gomobile
108
109 Simplifies toolchain installation and app deployment
110
111 To install the Android/iOS compiler tool chain:
112
113 $ gomobile init
114
115 To build an Android APK and an iOS app
116
117 $ gomobile -target=android build
118 $ gomobile -target=ios build
119
120 (Demo)
121
122 * SDK Apps
123
124 * Go as a library
125
126 Go 1.5 can build Go programs as a library that can be used by non-Go programs
127
128 - Shared library for dynamic linking (`-buildmode=c-shared`)
129 - Archive file for static linking (`-buildmode=c-archive`)
130
131 Functions marked with `//export` cgo annotations are callable.
132
133 .link /s/execmodes go.dev/s/execmodes
134

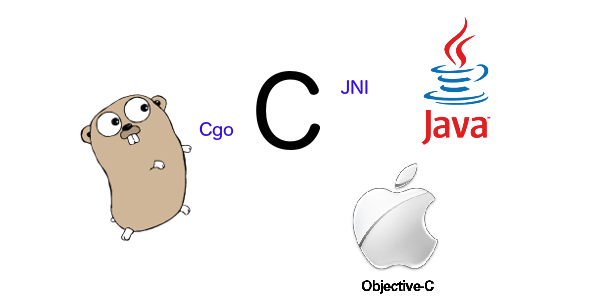

135 * Working with Foreign Languages
136
137 .image gophercon-go-on-mobile/gobind.png 300 _
138
139 Manually mapping data structures and functions between languages is tedious and error-prone!
140
141
142 * The gobind tool
143
144 $ go get golang.org/x/mobile/cmd/gobind
145
146 Automates language binding through code generation
147
148 Defines the language binding from exported Go APIs; no explicit annotation
149
150 Currently supports a [[https://pkg.go.dev/golang.org/x/mobile/cmd/gobind][subset of Go types]]
151
152
153 * Binding Functions, Basic Types & Errors
154
155 Go API
156
157 package mypkg
158
159 func Hello() (string, error) { return "Gopher", nil }
160
161 Generated Java API
162
163 public abstract class Mypkg {
164 public static String Hello() throws Exception { ... }
165 }
166
167 Generated Objective-C API
168
169 FOUNDATION_EXPORT BOOL GoMypkgHello(NSString** ret0_, NSError** error);
170
171 * Binding Structs
172
173 package mypkg
174
175 type Counter struct {
176 Value int64
177 }
178
179 func (c *Counter) Inc() {
180 c.Value++
181 }
182
183 func NewCounter() *Counter {
184 return &Counter{}
185 }
186
187 * Generated Java API
188
189 public abstract class Mypkg {
190 public static final class Counter {
191 public void Inc() { ... }
192 public long GetValue() { ... }
193 public void SetValue(long value) { ... }
194 }
195
196 public static Counter NewCounter() { ... }
197 }
198
199 Use it from Java
200
201 Counter counter = NewCounter();
202 counter.SetValue(12345);
203 counter.Inc();
204
205
206 * Generated Objective-C API
207
208 @interface GoMypkgCounter : NSObject { }
209 @property(strong, readonly) GoSeqRef *ref;
210 - (int64_t)Value;
211 - (void)setValue:(int64_t)v;
212 - (void)Inc;
213 @end
214
215 FOUNDATION_EXPORT GoMypkgCounter* GoMypkgNewCounter();
216
217 Use it from Objective-C
218
219 GoMypkgCounter* counter = GoMypkgNewCounter();
220 [counter setValue:12345];
221 [counter Inc];
222
223 * How to build it?
224
225 .image gophercon-go-on-mobile/memegobind.jpg 500 _
226
227
228 * The gomobile bind command
229
230 Simplifies the build process. For example, for Android,
231
232 - Generates language bindings for Go packages
233
234 - Compiles Go code to a shared library
235
236 - Compiles the generated target language code
237
238 - Bundles everything into a `.aar` file (modern way to distribute android libraries)
239
240 (DEMO)
241
242 iOS support is a work in progress.
243

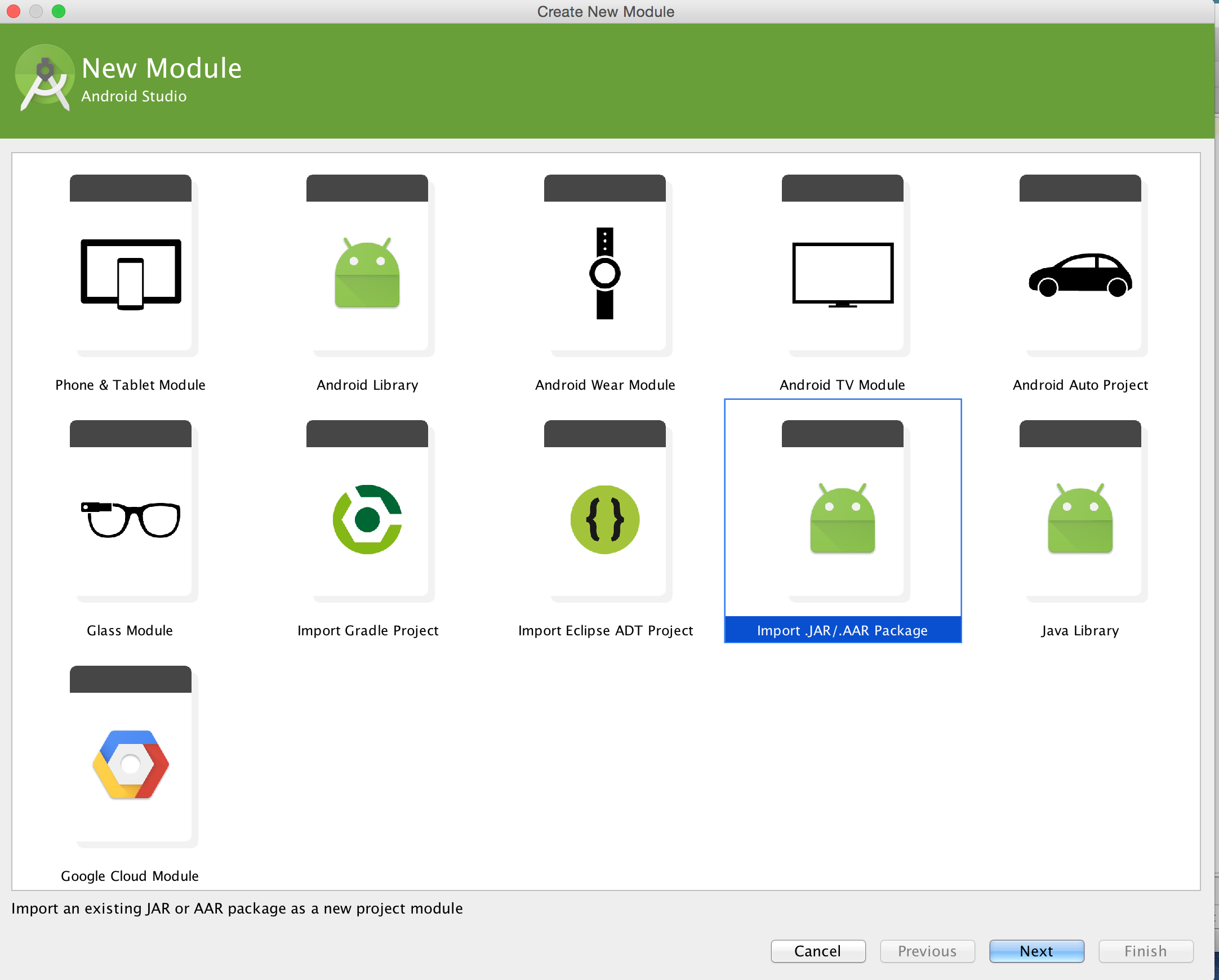

244 * Android Studio Integration
245
246 Android Studio 1.2+ supports `.aar` import.
247
248 .image gophercon-go-on-mobile/androidstudio2.png 250 _
249
250 To update the .aar,
251
252 - Build script to invoke `gomobile` `bind`, or
253 - Gradle plugin to invoke `gomobile` `bind` and publish the output
254
255
256 * The Story of Ivy
257
258 The [[https://robpike.io/ivy][Ivy]] is a command line tool developed by Rob Pike
259

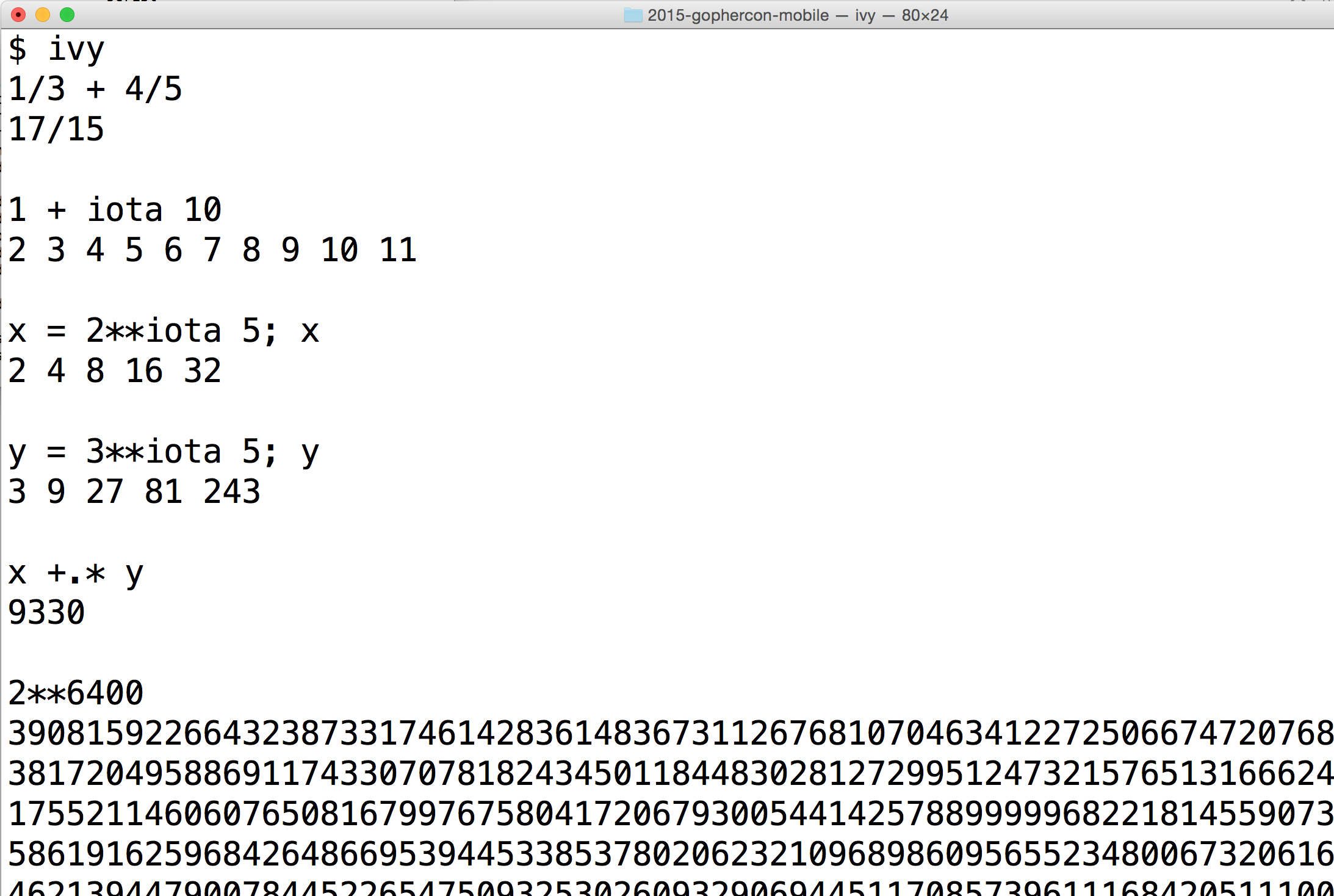

260 It's a useful desktop calculator that handles big int, rational and floating-point numbers, vectors, matrices, ...
261
262 .image gophercon-go-on-mobile/ivyscreenshot2.png 300 _
263
264 It is in fact an interpreter for an [[https://en.wikipedia.org/wiki/APL_(programming_language)][APL]]-like language
265
266 * Ivy on Mobile?
267
268 ~5k lines of Go code (not including tests, docs)
269
270 Dependency on `math`, `math/big`, `math/rand`, `unicode`, ...
271
272 .image gophercon-go-on-mobile/canihas.jpg 300 _
273
274 Rewriting in Java or Objective-C is a non-starter
275
276 * Ivy apps
277
278 .image gophercon-go-on-mobile/ivymobile.png 300 _
279 .caption Ivy logo by [[https://www.reneefrench.com][Renée French]]
280 .link https://play.google.com/store/apps/details?id=org.golang.ivy Google Play Store
281 .link https://itunes.apple.com/us/app/ivy-big-number-calculator/id1012116478 Apple App Store
282
283 * Gomobile bind
284
285 Write it once as a library in Go
286
287 Enjoy great language features and packages available in Go
288
289 * Where are we now?
290
291 * Go 1.4: Hello Android!
292
293 Released in December 2014
294
295 Can build Android apps (`arm`)
296
297 Android builder
298
299 The `gobind` tool for Java and Go language binding
300
301 Packages for cross-device apps: basic app control, OpenGL ES 2, touch
302
303 .link /s/go14android go.dev/s/go14android
304 .link /s/gobind go.dev/s/gobind
305
306 * Go 1.5: Hello iOS!
307
308 Planned release early August 2015
309
310 Experimental support for iOS (`arm,arm64`)
311
312 iOS builder
313
314 * Go 1.5: Go programs as libraries
315
316 Can call Go functions from foreign language in a clean way
317
318 .link /s/execmodes go.dev/s/execmodes
319
320 * Go 1.5: Better tools & more packages
321
322 `golang.org/x/mobile` repo getting better
323
324 - The `gomobile` tool for mobile app/library build
325
326 - Extended `gobind` tool: Objective-C binding
327
328 - `golang.org/x/mobile/exp`: experimenting with audio, sensor, sprite, ...
329
330 * Go 1.6+
331
332 - Improvement in GL/UI packages
333
334 - More APIs available to "pure Go" apps
335
336 - Testing, profiling, debugging
337
338 - Support for more platforms (e.g. android/x86, iOS simulator)
339
340 - Richer type support in `gobind`
341
342 - IDE integration
343
344 * Contributions from Go community
345
346 .image gophercon-go-on-mobile/contributors.png 480 _
347 .caption git log | word_cloud
348
